Epoxy Resin System

Powder, liquid, and molding epoxy resins
with UL certification

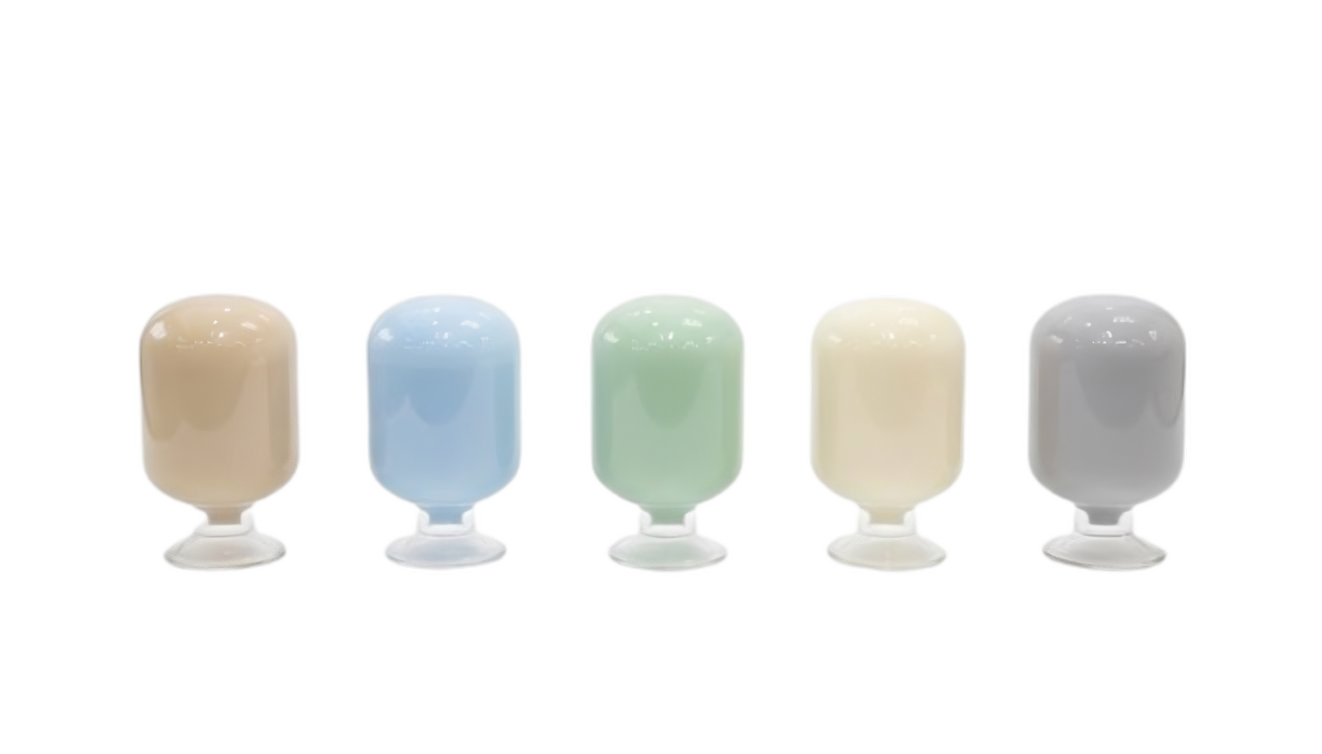

ETP-830 Powder Epoxy Resin

Overview
ETP-830 series powder epoxy resins provide superior coating quality for film capacitors, ceramic capacitors, MLCCs, and resistors. Available in all colors with UL 94V-0 certification.
Key Benefits

✓Multiple color options for product differentiation
✓Cost-efficient particle size distribution
✓Excellent gloss and appearance
✓High reliability and thermal stability
✓RoHS, SVHC, and Halogen-free options
✓UL approved for safety-critical applications

Application Method
  • Under coating: WAX, EPOXY, or UV resin
  • Preheat: 100~120°C for 30 minutes in dry oven
  • Coating temperature: 100~130°C
  • Coating cycles: 3~4 times
  • Dipping time: 1~2 seconds
  • Curing: 100°C/2 hours or 120°C/1 hour
Applications
Film capacitors Ceramic capacitors MLCC Chip resistors
Technical Specification
ETP-830 Series Comparison
Property ETP-830 ETP-830HF ETP-830 IEC
Color All colors All colors All colors
Gel Time (150°C) 60±20 sec 60±20 sec 60±20 sec
Plate Flow (150°C) 60~95 60~95 60~95
Particle Size (Mean) 80±5μm 80±5μm 80±5μm
Melting Point 45±2°C 45±2°C 45±2°C
Cure Schedule 110°C/1.5h or 120°C/1h 110°C/1.5h or 120°C/1h 110°C/1.5h or 120°C/1h
Special Features Normal type Halogen-free, IEC type Halogen type, IEC
Packaging & Storage
Packaging & Storage
Packaging: 20kg poly-bag in carton box
Shelf Life: 12 months when stored below 10°C

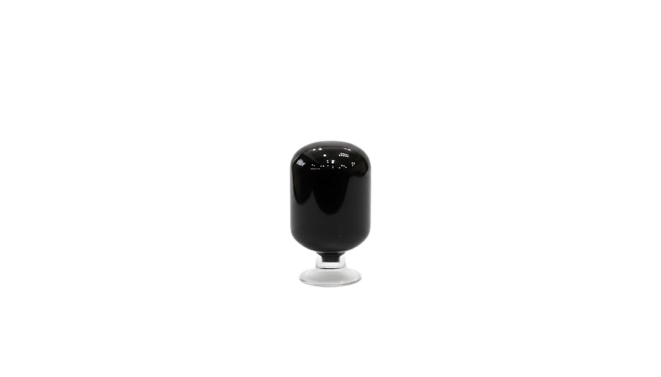

ETR-50DL DC Link Epoxy Resin

Overview

ETR-50DL series is specifically engineered for AC capacitors and DC link applications in electric vehicles, hybrid vehicles, and motor battery systems. UL 94V-0 certified with excellent thermal shock resistance.

Key Benefits
✓Flame-resistant and non-flame-resistant options
✓Customizable viscosity for different processes
✓RoHS and SVHC compliant
✓Excellent thermal shock resistance
✓Long pot life for extended working time
✓Superior absorptivity for optimal impregnation
Applications
AC condensers Electric vehicle motor batteries DC link capacitors Hybrid vehicle power systems
Technical Specification
ETR-50DL Series Comparison
Property Non-FR FR Low Visc. FR
Resin Color Black Black Black
Hardener ETH-50B(DL) ETH-50B(DL) ETH-50B(DL) Low Visc.
Hardener Color Yellowish White Yellowish White Yellowish White
Specific Gravity 1.65±0.05 1.67±0.05 1.63±0.05
Mix Ratio 100:90 wt% 100:90 wt% 100:90 wt%
Mixture Viscosity (25°C) 10,000~30,000 cps 10,000~30,000 cps 8,000~20,000 cps
Mixture Sp. Gr. 1.65±0.05 1.59±0.05 1.62±0.05
Cure Schedule 85°C×2.5h + 100°C×4.5h 85°C×2.5h + 100°C×4.5h 85°C×2.5h + 100°C×4.5h
Glass Transition (Tg) 110±5°C 121±5°C 110±5°C

Packaging & Storage
Packaging: 30kg plastic bucket
Shelf Life: 6 months when stored below 15°C

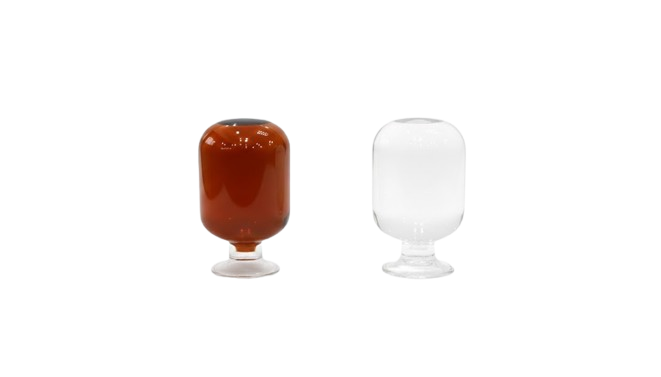

ETR-50B Molding Epoxy Resin

Overview

The EPOXY RESIN-50 series provides flexible molding and potting solutions for various electronic components. Composed of ETR-50B (resin) and ETH-50B (hardener), this system offers convenient workability and excellent electrical properties.

Key Benefits
✓Convenient workability with adjustable viscosity
✓Excellent stability and reliability
✓Superior electrical properties
✓UL 94V-0 certified
✓RoHS, SVHC, and Halogen-free options
✓Multiple formulation types for different applications
Applications
Film capacitors (axial lead) AC capacitors High voltage components Electronic control boxes Power supply modules
Technical Specification
Formulation Types Comparison
PropertyFiller Type
(R/D/H 100/20)		Acid Anhydride
(R/D/H 100/40)		Non-Filler
(R/D/H 100/20)
ColorAll colorsAll colorsAll colors
Mix Ratio100/20100/40100/20
Mixture Viscosity500~5,000 cps500~5,000 cps500~5,000 cps
Cure Schedule50°C/4h80°C/4h50°C/4h
Pot Life (25°C)2 hours24 hours2 hours
ApplicationsAxial lead type
A/C capacitors		High voltage parts
A/C capacitors		Normal A/C type
Mini box type
Packaging & Storage

ETR-50B: 10kg or 20kg steel can
ETH-50B: 15kg steel can or 200kg drum
Shelf Life: 12 months @ 15°C below

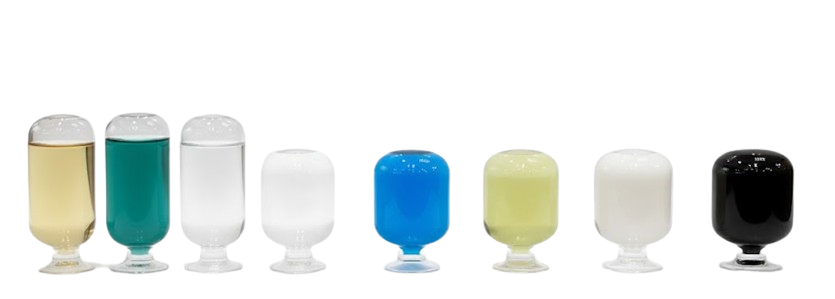

Liquid Epoxy Coating

Overview

High-performance liquid epoxy resins designed for even spreading and superior finish quality. Available in transparent and colored formulations with excellent gloss and long pot life



Key Benefits

✓Even spread and excellent permeability
✓Convenient workability
✓Long pot life (12 hours at 25°C)
✓Excellent luster and appearance
✓RoHS, SVHC, Halogen-free

Top Coating Solutions

ETR-10 Series
Standard viscosity, all colors

ETR-10CL Series
Transparent finish

ETRF-10 Series
Flexible formulation

Top Coating Solutions

ETR-30/ETH-30
General purpose

ETR-300/ETH-300
PP/PET film applications

Applications
Film capacitor coating Surface protection Moisture barrier Aesthetic finish
Packaging & Storage

Packaging: 10kg or 20kg can
Hardener & Diluent: 6 months shelf life
Resin: 4 months at room temperature

Top Coating Specifications
Top Coating Series
PropertyETR-10 / ETD-10 / ETH-10ETR-10CL / ETD-10 / ETH-10ETRF-10 / ETD-10 / ETH-10
ColorAll colorsTransparentAll colors
Viscosity (25°C)20,000~41,000 cps10,000~25,000 cps25,000~45,000 cps
Mixing Ratio
(Resin/
Diluent/
Hardener)		100 / 30 / 30100 / 30 / 30100 / 30 / 30
Mixture Viscosity2,500~6,000 cps2,500~6,000 cps2,500~6,000 cps
T.I. Index5.0 ~ 8.05.0 ~ 8.05.0 ~ 8.0
Cure Schedule100°C / 2 hr100°C / 2 hr100°C / 2 hr
Pot Life (25°C)Approx. 12 hrsApprox. 12 hrsApprox. 12 hrs

Under Coating Specifications
Under Coating Series
PropertyETR-30 / ETH-30ETR-300 / ETH-300
Viscosity (25°C)1,500~5,000 cps1,500~5,000 cps
Mixing Ratio
(Resin/Hardener)		100 / 80100 / 80
Mixture Viscosity100~2,500 cps100~2,500 cps
Cure Schedule105°C / 2 hr105°C / 2 hr
Pot Life (25°C)36 hrs36 hrs
ApplicationGeneral purposePP / PET film applications
